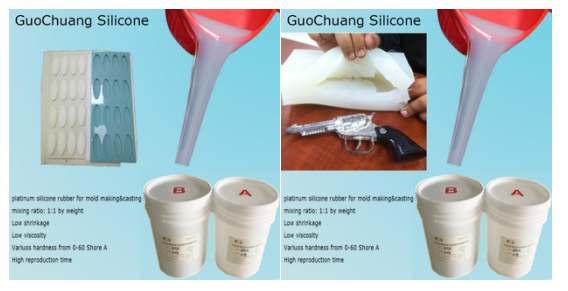

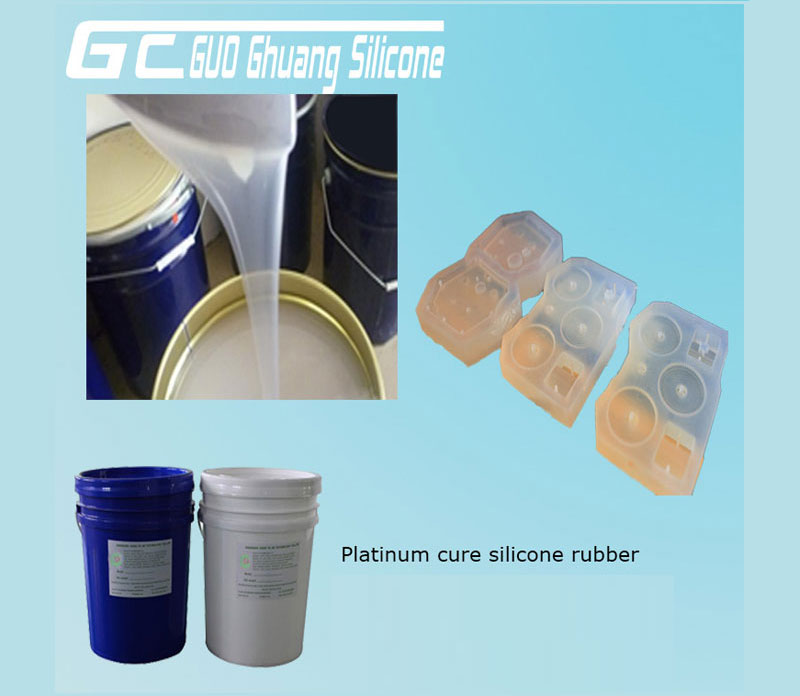

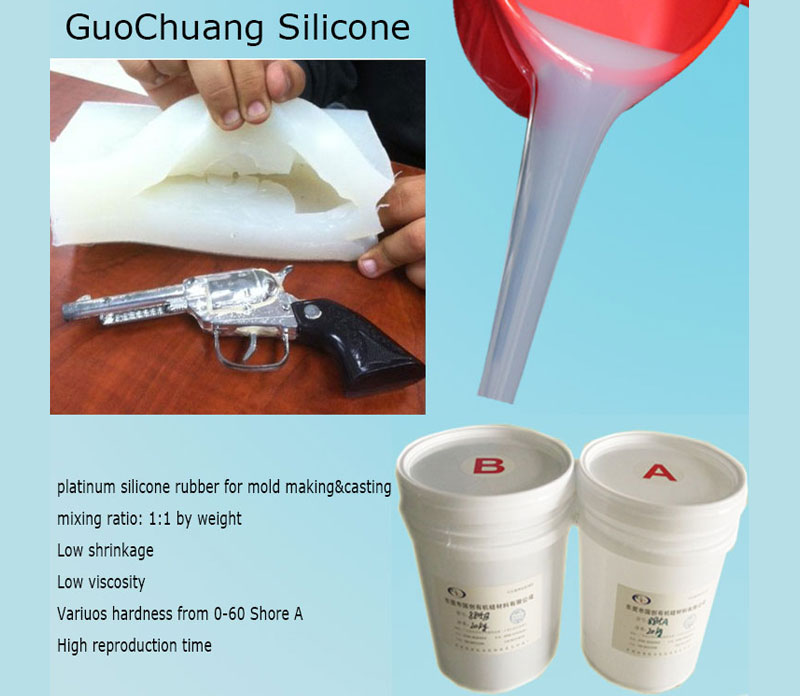

Platinum Cure Silicone Rubber for Prototyping

Features

1.Amazing fluidity and easy to operate

2.Platinum-based, food-grade silicone (environmental friendly, odorless and non-toxic)

3.Delicate design available

4.Mixing ration: 1:1, easy to mix

5.Easy de-molding

6.Excellent tension and tear strength

7.High performance in duplication

8.Shrinkage is almost zero (below 0.1)

9.Excellent resistance to weather, temperature, aging, acid and aging-proofing.

10.High resistance to high temperature and aging(resist -60℃ to 250℃)


Application:

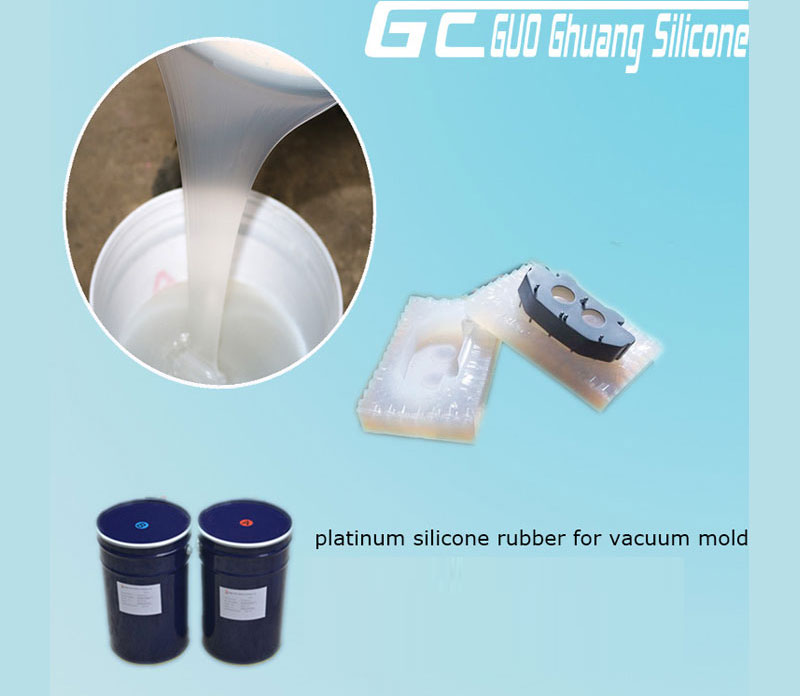

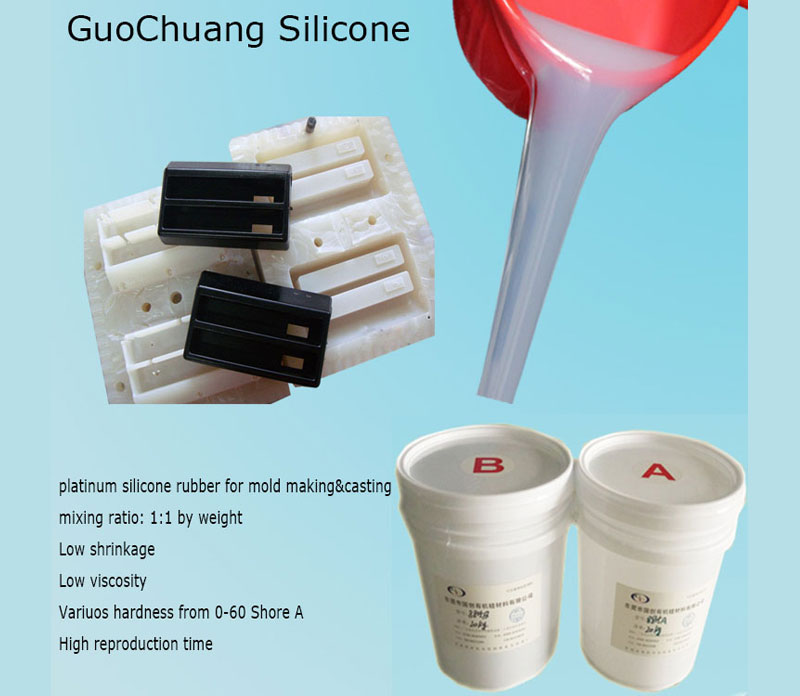

GC RTV silicone G-8 series are great for prototyping. Rapid prototyping is a method to create a original model or functional parts quickly from your design to an real item. When you draw a CAD and create a new model by stereo lithography or other 3D printing process, it can be duplicated by prototyping silicone to make a mold and cast parts. Now, the prototyping silicone is wildly used for car model, toy model, part model, plane model, phone molding, etc.


Operation Method:

Both pouring or brushing operation methods for our rapid prototyping molding silicone are available. You can choose the best one as your preference, we can provide thixotropic agent for brusing.


Appearance

Part A: a non-toxic and odorless liquid with translucent color and platinum inside.

Part B: a non-toxic and odorless liquid with translucent color.

ATT: We can do any curing time as your requirements.


Technical Data

Characteristics of the non cured product

PropertiesG-820G-825G-830G-835G-840
ABABABABAB
Appearancelow viscous liquid
Colourtranslucent
Density [g/cm 3 ] at 23 °C, approx1.101.101.101.101.10
Viscosity [mPa·s] at 23 °C, approx5000±10006000±10007000±10008000±10009000±1000

PolymerisationCuring conditions: 1h at 80 °C

PropertiesG-820G-825G-830G-835G-840
Hardness Shore A20±225±230±235±240±2
Tensile strength [N/mm 2 ]45±1050±1055±1055±1060±10
Elongation [%]500±50500±50450±50450±50450±50
Tear strength [N/mm]22±224±226±224±212±2

Notice:

What is the hardness should I choose?

Normally 20~40 Shore A will be the best, but it also should according to your size and pattern design.


Warm Tips:

The surfaces with which the material comes in contact must be perfectly clean, free of grease and dry.

Close the bottles after use so as not to confuse the cap of the catalyst with that of the base when re-sealing.

Be aware of possible cross-contamination; it’s highly recommended to use only dedicated gear when processing poly-addition RTV2 silicone rubber (including degassing devices).

Be aware that contact with certain material can inhibit the curing of the RTV2 poly-addition silicone rubber. Common contaminants to be avoided include:

-Natural or synthetic rubber, vulcanized with sulphur derivatives.

-Poly-condensation RTV catalyzed with metallic salts.

-PVC stabilizing agents.

-Amine cured epoxies.

-Sulphur, tin and amines derivatives.

-In case of doubt, carry out a small test by pouring the mixture onto a small area of the object.


Package

Part A:1kg/drum; 20kg/drum;25kg/drum;200kg/drum.

Part B:1kg/drum; 20kg/drum;25kg/drum;200kg/drum.

Platinum Cure Silicone Rubber for Prototyping
