1. Description of Tin Cure Silicone mold making rubber
Tin Cure silicone also called condensation-cure silicone, these are high-tear silicone rubbers that are known as the “work horse” of the industry because of their performance and economy.It curing by poly condensation process.The ratio is usually 100:5 in weight, demoulding time can change from 3 to 24 h according to the type of catalyst used.
2. Features of Tin Cure Silicone mold making rubber
Good chemical resistance to aggressive components that the resins contain
Good resistance to tearing
Reproduction accuracy even of micro-details
Dimensional stability in time ( deformation - shrinking only up to 0.3 % )
Remarkable resistance to high temperatures (up to 200 - 220℃ )
Final curing at room temperature
3. Applications of Tin Cure Silicone mold making rubber
-Architectural Restoration
-Sculpting/Wax Casting
-Concrete/GRC Casting
-Gypsum/Plaster Decoration
-Polyester/Resin Crafts Molding
-Furniture Molding
-Candles MoldmaKing
-Soaps MoldmaKing
-Tire Molding
-Rapid Prototyping Urethane casting
-Detailed reproduction of figurines, art objects and similar items
4. Technical datasheet of C-8 series Tin Cure Silicone mold making rubber
| Item No. | Appearance | Hardness (shore A) | Viscosity (CPS) | Tensile-strength ( N/mm² ) | Tear-strength (KN/m ) | Elongation-break(%) | Mixing ratio | operation time (25 ℃ ) | Curing time ( 25 ℃) | Shrinkage(%) |
| C-805 | white | 5 | 3000±1000 | 1.8±0.5 | 10±2 | 300±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-810 | white | 10 | 6000±1000 | 2.0±0.5 | 12±2 | 320±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-815 | white | 15 | 14000±1000 | 2.5±0.5 | 18±2 | 350±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-820 | white | 20 | 16000±1000 | 3.6±0.5 | 20±2 | 400±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-825 | white | 25 | 20000±1000 | 4.0±0.5 | 22±2 | 450±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-830 | white | 30 | 22000±1000 | 4.5±0.5 | 26±2 | 480±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-835 | white | 35 | 23000±1000 | 5.0±0.5 | 23±2 | 460±50 | 100:2 | 20-30 | 2-3 | 0.3 |
| C-840 | white | 40 | 25000±1000 | 4.0±0.5 | 20±2 | 400±50 | 100:2 | 20-30 | 2-3 | 0.3 |
4.Appearance

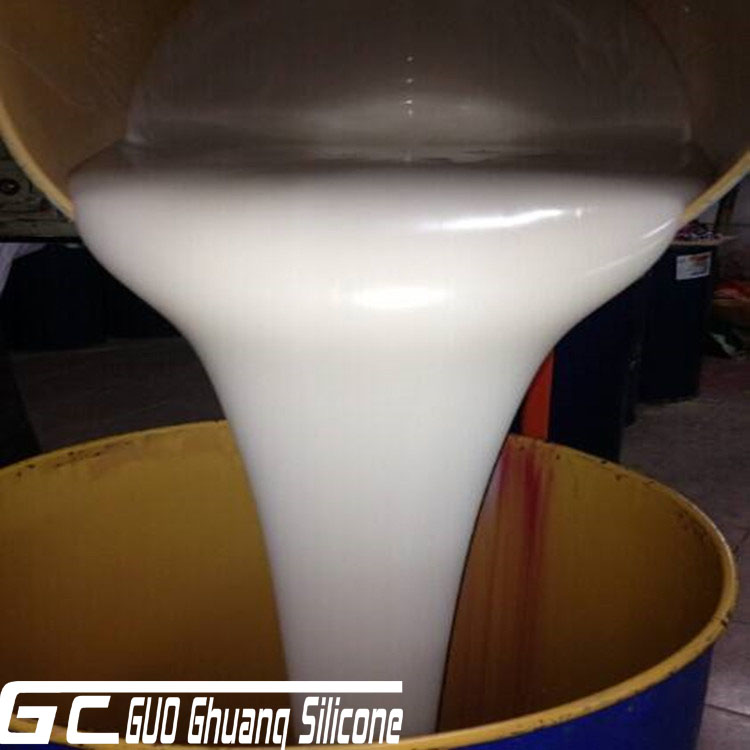

Part A: Silicone rubber is a white liquid
Part B: Catalyst is a non-toxic and odorless liquid, white transparent color.
ATT: We can provide fast/medium/slow catalyst of for hot, warm or cold season.
5.SHELF LIFE:
When stored at or below 32°C (89.6°F) in the original unopened containers, C-8 series Silicone Base and its Curing Agents have a usable life of I0 months.
6.Package
Silicone base:1kg/drum; 20kg/drum;25kg/drum;200kg/drum.
Curing Agent: 30g/bottle; 1kg/bottle
