Artificial Stone & Concrete Casting Silicone Rubber

1. Description

C-825/C-830/C-835 Silicone Rubber is a two-part, tin-catalyzed, liquid silicone system that cures (RTV) to a white, Shore A25-A35 rubber. This is a pourable rubber, but it can be easily thickened with Liquid Thickener or for brush-on application.


Popular product options is C-825/C-830/C-835 are the mold material of choice for high-volume veneer stone production (manual or automated manufacturing). These two-component mold rubbers capture excellent surface detail, offer exceptional dimensional stability and have unmatched lifetime and durability compared to hot melt and polypropylene systems.


Molds made from these room temperature curing systems can be completed in a much shorter timeframe (~4 hour demold) compared to latex rubber molds. When properly maintained, these molds can last for years and produce thousands of stones.


2. Technical Datasheet


Typical general characteristics Inspection MethodValue
Product data (Catalyzed A+B)
C-825C-830C-835
HardnessShore A25±230±235±2
Mix RatioA:B100:3100:3100:3
Color/WhiteWhiteWhite
Pot life25 °C (77F)30-40mins30-40mins30-40mins
Curing time25 °C (77F)3-4 hours3-4 hours3-4 hours
Mixed viscositymPa.s20000±100023000±100023000±1000
Tear-strengthkg/cm22±223±223±2
Tensile-strengthM.pa4.0±0.55.0±0.55.0±0.5
Elongation%450±50460±50460±50
Shrinkage%≤0.3≤0.3≤0.3


Note: This is a 100A:3B mix ratio product that must be measured by weight. The choosing of suitable hardness should be according to the size and pattern design of the products. If large products and therefore multiple-piece molds are needed by customers, silicone rubber with higher hardness will be required for the molds. Conversely, soft silicon is indispensable for molds with complicated pattern and delicate details. The amount of curing agent admixture depends on the actual need of customers. More will be added for speedy drying and fast release and less when otherwise.


3.Application

Making molds for

-cast stone veneer: artificial stone, fake stone, artificial rock, cultured stone

-Flexible Form Liners, cast decorative concrete panels, wall blocks, fencing, retaining walls and sound barriers

-Site Furnishings & Decor: decorative concrete,concrete statues, tiles, decorative panels, outdoor and indoor furniture, planters and many other decorative precast concrete products,

-precast concrete hardscape: pavers, stepping stones, patio stones, rock face liners, fire pits, retaining wall block, pier and wall caps and more,

-architectural elements,concrete brackets, decorative panels, medallions, cornice molding, balusters, columns and more

Artificial Stone

4. FEATURES

1.No oily surface on the cured mold

2.Low viscosity

3.Extra low shrinkage

4.Pouring and brushable silicone

5.High tear strength

6.Enhanced durability

7.High reproduction rate


5.SHELF LIFE:

When stored at or below 32°C (89.6°F) in the original unopened containers, C-8 series Silicone Base and its Curing Agents have a usable life of I0 months.


6.Package

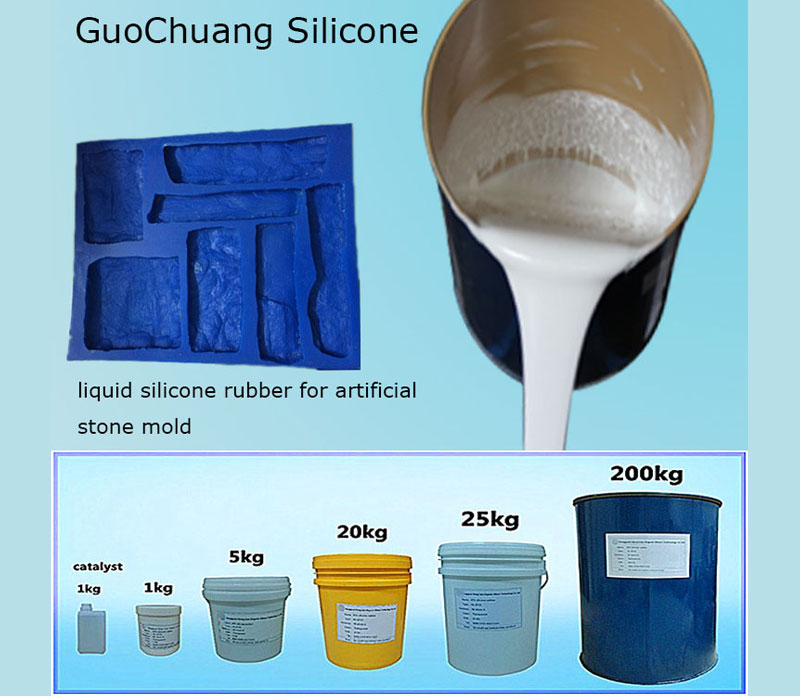

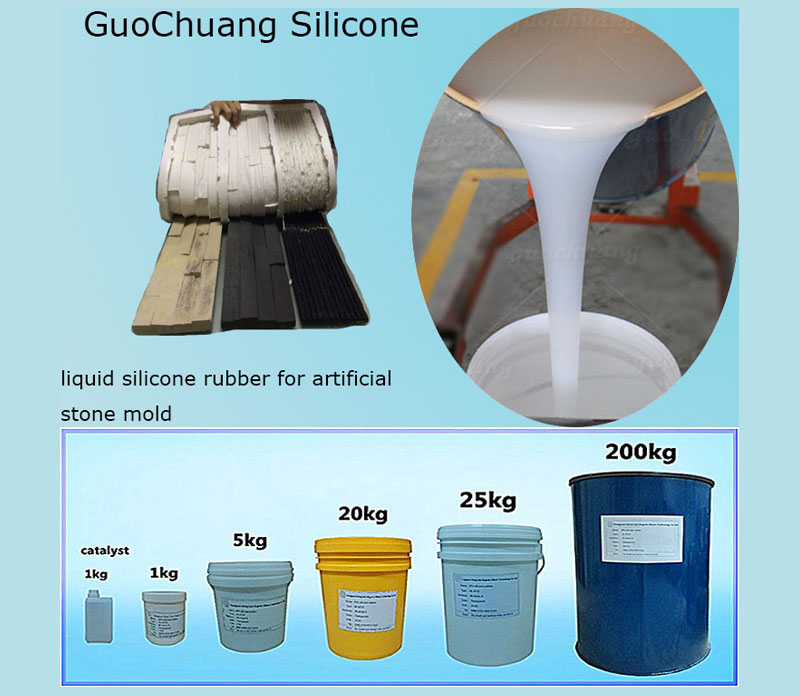

Silicone base:1kg/drum; 20kg/drum;25kg/drum;200kg/drum.

Curing Agent: 30g/bottle; 1kg/bottle
