Platinum cure silicone rubber for making molds

1. Description

Platinum cure silicone rubber also known as addition-cure silicone, platinums exhibit the lowest long-term shrinkage and have the longest library life of all mold rubbers (with a price tag to match). While good for making molds for casting a variety of materials, platinums also have application and physical properties that other rubbers do not. As a result, they are used for other applications. For example, some are certified “skin safe” and can be applied directly to human skin. They are also used for making prosthetic and orthotic devices, skin safe appliances and effects, etc. Some are certified “food safe” for culinary applications. GuoChuang G-8 series is platinum cure silicone, mixing ratio can be 1:1 or 10:1, hardness ranges from 0 Shore A to 60 Shore A. The natural color of platinum cure silicone is translucent and any color can be adjusted as your request.

2. Features

-Amazing fluidity and easy to operate

-Platinum-based, food-grade silicone (environmental friendly, odorless and non-toxic)

-Delicate design available

-Mixing ration: 1:1, easy to mix

-Easy de-molding

-Excellent tension and tear strength

-High performance in duplication

-Shrinkage is almost zero (below 0.1)

-Excellent resistance to weather, temperature, aging, acid and aging-proofing.

-High resistance to high temperature and aging(resist -60℃ to 250℃)

3. Technical datasheet

 4. Using instructions

1. Place a plastic container on a small scale, making sure to zero out the weight on the scale. Note: use a container that, during rise under vacuum in Step 5, will allow for material to expand to 4-5 times its resting volume.

2. Pour catalyst into the plastic container, noting weight of material poured.

3. In the same container, pour an equal weight of base on top of the catalyst (e.g., 100 grams of catalyst and 100 grams base). Note: within a 5% weight variance, the end result is not altered.

4. With a clean, dry mixing spatula, mix energetically until the color of the product is homogeneous. Note: working time begins at this step. Mixing should take no longer than 1-2 minutes.

5. Place container under vacuum and vacuum until material bubbles and rises. Release vacuum and repeat until bubbles are removed. Vacuuming should take no longer than 3-4 minutes.

6. From a height of approximately 30 cm, pour the mixed silicone into the mold frame. Maintain the pouring stream in the same spot so as to minimize introduction of air bubbles into the mold.

7. Allow the mold to sit, undisturbed, for at least 4 hours to ensure the silicone is fully cured.

8. Remove the mold from the frame.

9. Cut around the pattern carefully to release it from the silicone rubber mold.

4.Appearance

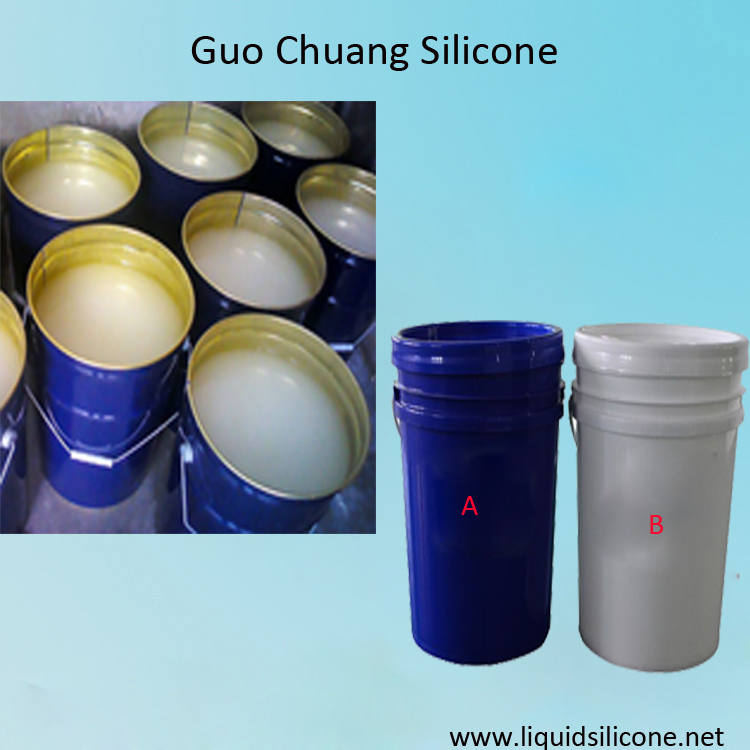

Part A: a non-toxic and odorless liquid with translucent color and platinum inside.

Part B: a non-toxic and odorless liquid with translucent color.

ATT: We can do any curing time as your requirements.

5.SHELF LIFE:

When stored at or below 32°C (89.6°F) in the original unopened containers, G-8 series Silicone have a usable life of 12 months.

6.Package1kg/drum; 20kg/drum;25kg/drum;200kg/drum.
